Sale – Bruker S1 Turbo SD-LE

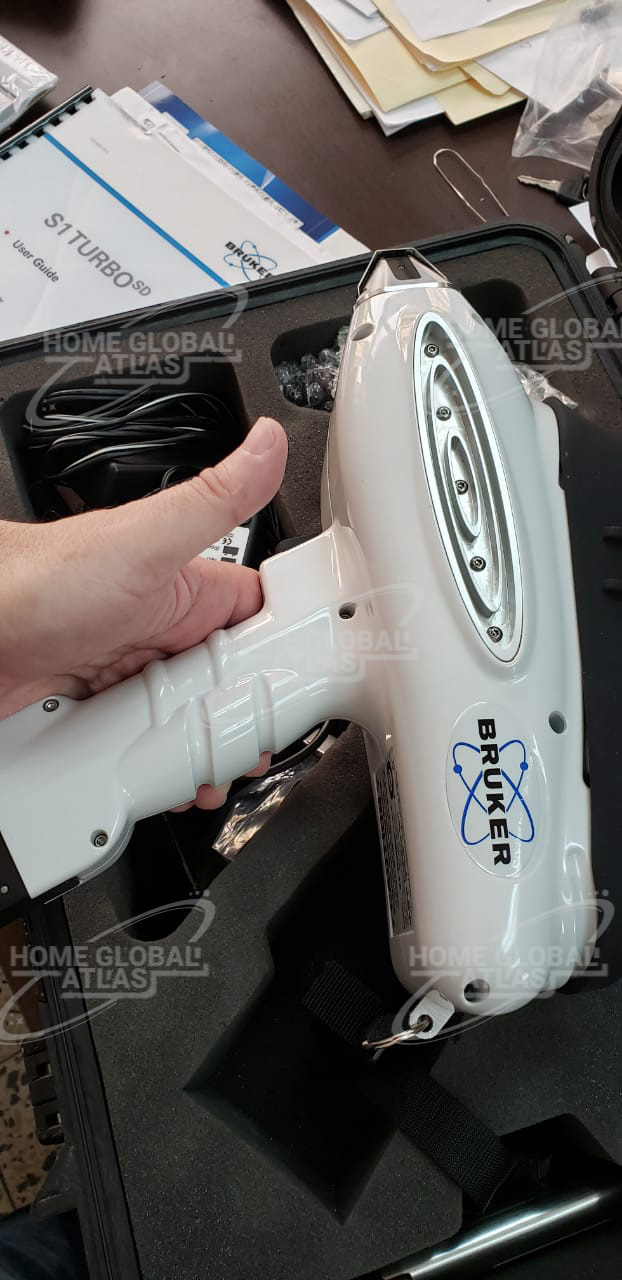

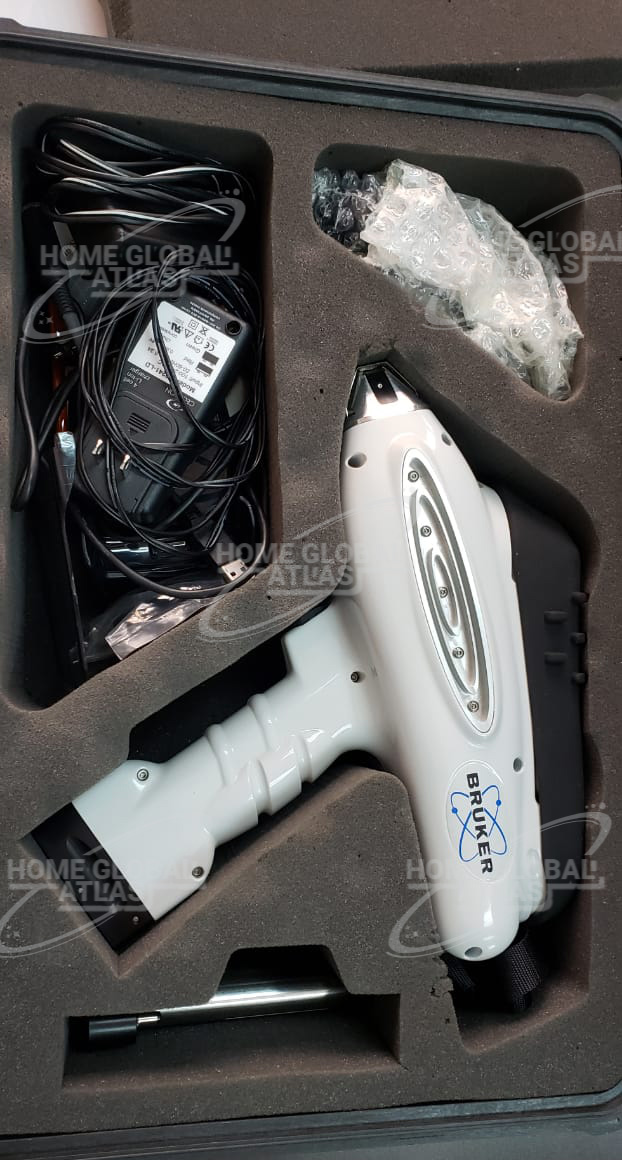

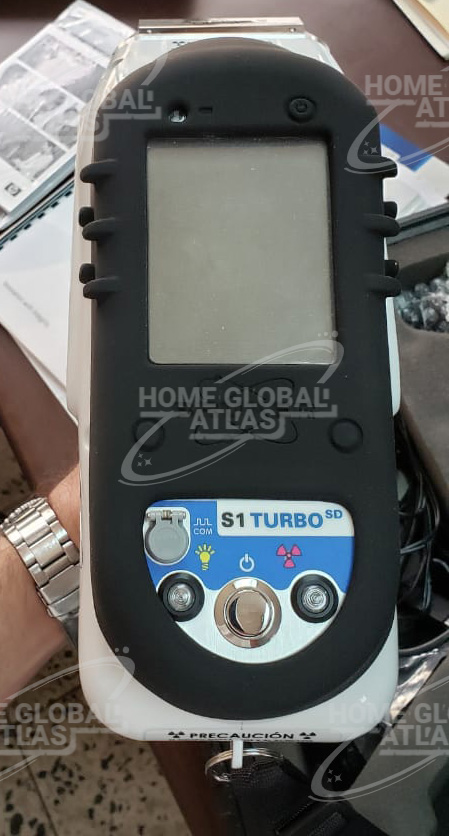

Bruker S1 Turbo SD-LE

Bruker S1 Turbo SD-LE XRF Analyzer based on Bruker’s proprietary X-Flash silicon drift detector (SDD) provides rapid alloy analysis and light element analysis. Provides analysis of light elements, such as magnesium, aluminum and silicon, without the need for vacuum or helium atmosphere (S1 TURBOSD LE only).

Home Global Atlas sell Bruker S1 Turbo SD-LE with best quality product

Bruker S1 Turbo SD-LE Portable XRF Spectrometer

General
Manufacturer
Bruker Corporation
Product Name
S1 Turbo SD-LE
Detection Category
Chemical; Explosives
Detection Principle
Elemental Analysis;
Detection Method
X-ray Fluorescence ;
Application
Emergency Response; Screening; Bulk Analysis;
Equipment Type
Instrument

Availability
DISCONTINUED
Technology Readiness Level (TRL)  9
User Feedback Sources
Indifferent/No user feedback

Physical Parameters
Dimensions
11.8 x 3.9 x 11 in (300 x 100 x 280 mm)
Weight
<5 Lbs.; 4.49 Lbs. (2 kg) with batteries 3.9 Lbs. (1.77 kg) without batteries

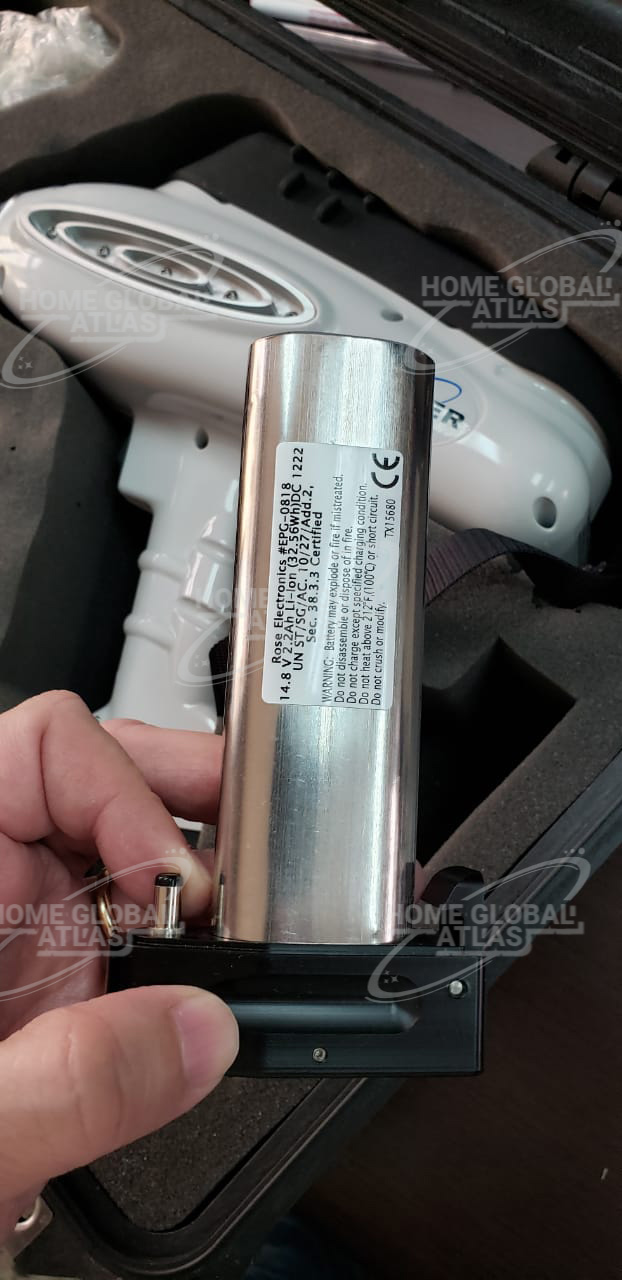

Power Requirements
Lithium Battery; AC/DC Line Power; Li-ion (6 hr. operating time) AC Adapter: Optional
Noise Produced
Negligible

Logistical Parameters
Transportability
Handheld
Ruggedness
None; Not militarized, drop sensitive
Operating Conditions
–10 to 50°C (14 to 122°F)
Consumables
None
Solvents/Reagents
None
Calibration Schedule
Factory calibrated with 31 or 36 elements
Communications Interface
ActiveSync via USB or wireless Bluetooth Memory Card
Shelf Life
>5 years

Operational Parameters
Other Chemical Targets
Elemental analysis
Adaptability
No; cannot detect or add new targets
Sample Introduction
Solid
Start Up Time (From Cold Start To Sample Ready)
15 minutes
Response Time (Sample Application To Output)
<5 minutes; 2 minutes
Alarm Capability
Pass/Fail option
Software Control
Yes
Other Operational Parameters
10 mm2 X-Flash SDD Detector, Peltier cooled; typical resolution 145 eV @ 100,000 cps X-ray tube with Ag target
