Sale – Easy-Laser D450

Easy-Laser D450

Easy-Laser D450, for users who want a simple, reliable and cost-effective measuring system for the alignment of horizontally-installed machines. Provides vertical and horizontal alignment solutions, graphically on the display screen. EasyLink for Windows is included to upload alignment data and export it to Excel.

Home Global Atlas sell Easy-Laser D450 with best quality product

Easy-Laser D450 Laser Shaft Alignment and Measurement Kit

System Description
For users who want a simple, reliable and cost-effective measuring system for the alignment of horizontally-installed machines. Provides vertical and horizontal alignment solutions, graphically on the display screen. EasyLink for Windows is included to upload alignment data and export it to Excel.

Programs
Simple laser shaft alignment. See below. System
requires 180° of rotation.

Typical applications:
Pumps, motors, gearboxes.

Simple to Operate
Features Dual Laser System-each laser fires into the opposing sensor. Similar to reverse-dial method.
No training required-follow on-screen instructions.
Precision results in less time.

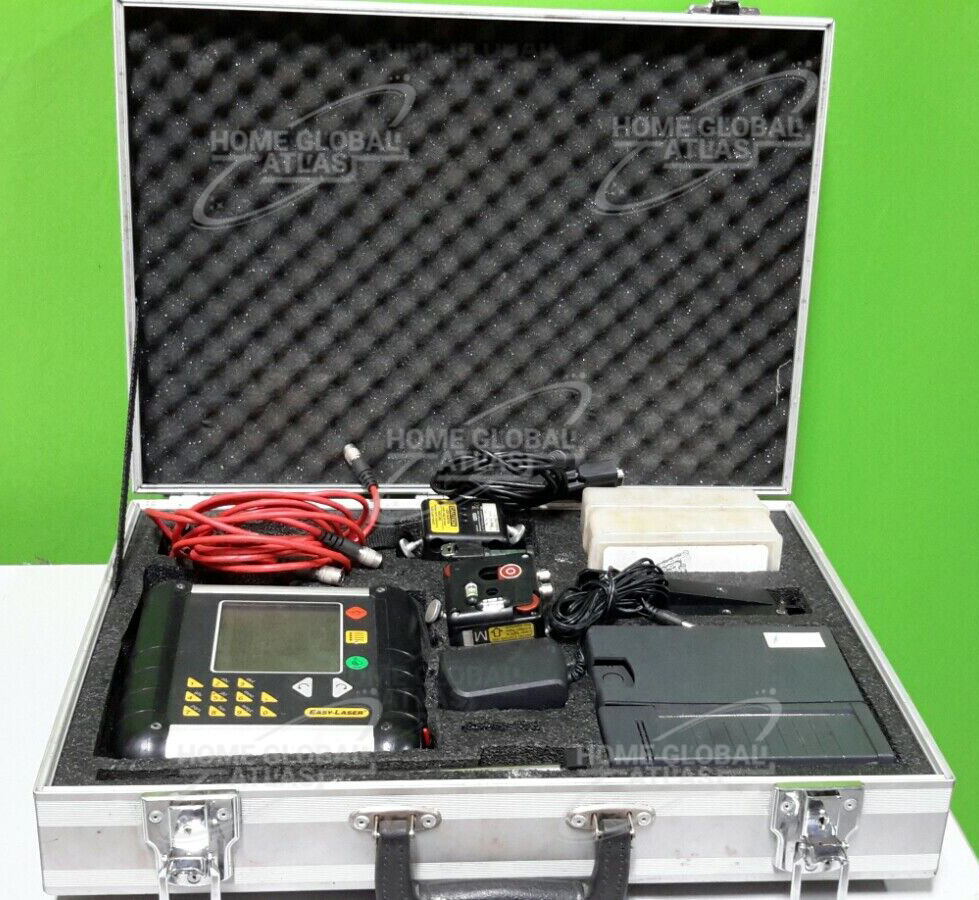

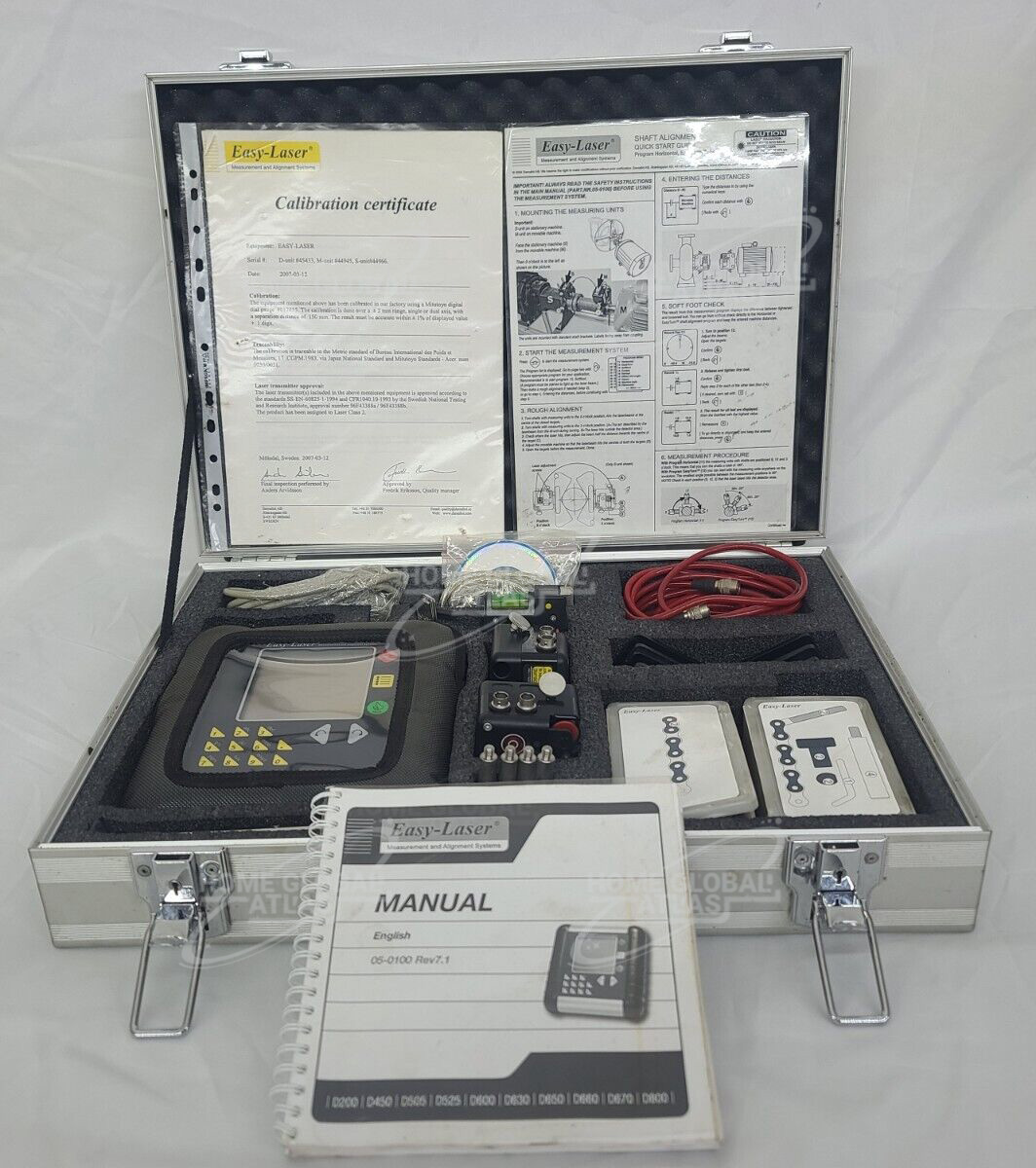

Easy-Laser D450 System :

(2) 10 x 10 mm PSD (laser/detectors) with 2m cables.
(1) Display Unit D279 with firmware for alignment of horizontal machines and SoftFoot Indicator, Thermal Compensation, Tolerance Check and Measurement Value Filter.
(1) Leatherette Cover for Display Unit
(2) Fixture Bases with chain fasteners
(1) Set 2.5″ Risers
(1) Set of 9.5″ Risers, (2) 36″ Chain Extensions
(1) Tightening Tool
(1) Tape Measure

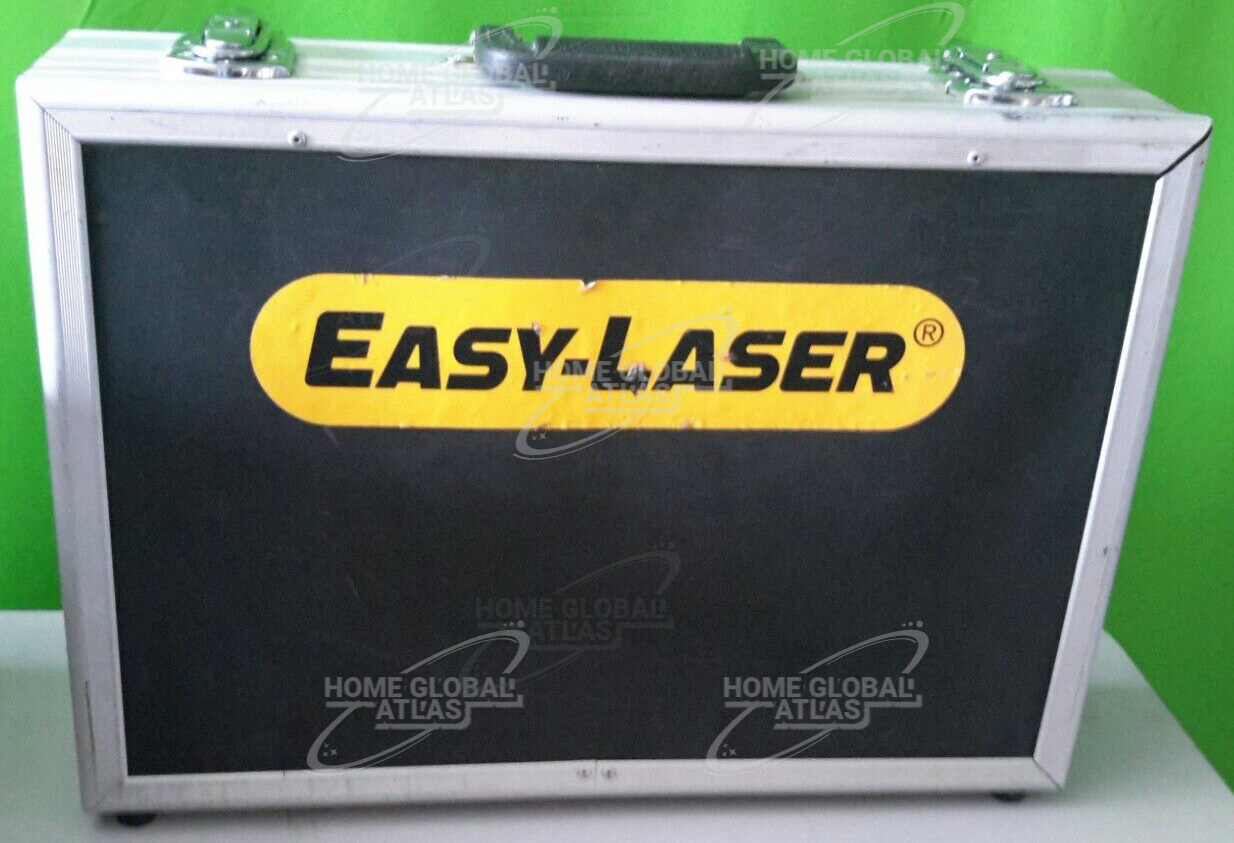

(1) Carrying Case
(1) EasyLink™ Windows® based software and Communication Cable
