Sale – ECOM J2KNpro

ECOM J2KNpro

ECOM J2KNpro is the “heavy-duty”, version of the J2K, with the analyzer and all of it’s outstanding features built into a rugged hard-sided, aluminum reinforced case.

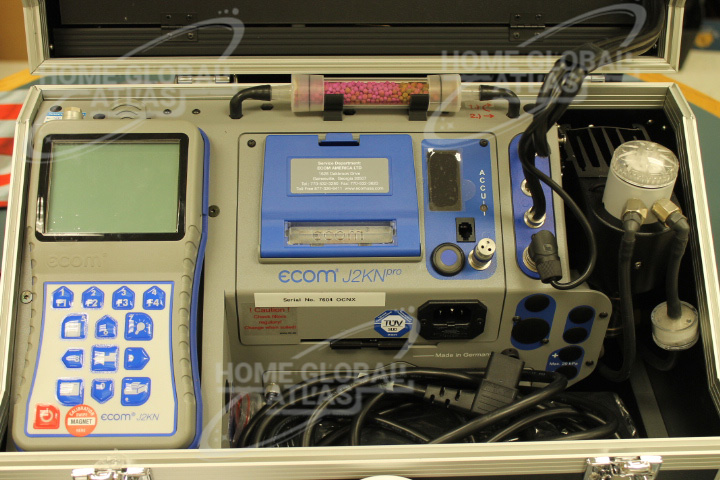

With wireless remote control, the J2KN’s handheld remote allows complete operation of the analyzer showing all values at a glance, zoom display capability, and plug-in memory up to 256 MB. The tactile keypad guides the operator through the various functions of the analyzer.

Home Global Atlas sell ECOM J2KNpro with best quality product

The remote display feature makes the J2K an ideal emission analyzer where combustion controls are located away from the flue test port on large combustion systems. The J2K can be fitted with up to 5 gas sensors to measure O2, CO, NO, NO2, and Combustibles, along with gas and ambient temperatures, stack draft & pressure, plus calculations of CO2, efficiency, excess air, and oxygen correction to 20%.

Brand : ECOM
Product Code : J2KNpro
Condition : New
Availability : In Stock
Warranty : 2 Year

Features :

In-line flowmeter with 3.5+ lpm pump
Measures O2 CO NOx Low NOx SO2 and combustibles
Stack Temperature and Draft Measurement
Thermoelectric Gas cooler & Automatic
Ambient Flue Gas Sensor Temperature Measurement

Technical Specifications :

Measurement – Oxygen (O) : Range: 0 – 21% vol.
Carbon Monoxide © : Range: 0 – 4000 ppm
Carbon Monoxide (V) : Range: 1 – 40000 ppm
Nitric Oxide (N) : Range: 0 – 4000 ppm
Nitric Oxide (.N) : Range: 0 – 400 ppm
Nitrogen Dioxide (X) : Range: 0 – 500 ppm
Nitrogen Dioxide (.X) : Range: 0 – 50 ppm
Sulfur Dioxide (S) : Range: 0 – 5000 ppm
Combustibles (H) : Range: 0 – 6.00 % vol
Gas Temperature : Range: 32 – 1800 F
Ambient Temperature : Range: 0 – 250 F
Draft / Pressure : Range: ± 40\” H2O
Operating Temperature : Core temperature of the instrument is monitored continuously. Internal Temperature Compensation software assures accurate sensor response ov
Display : Backlit adjustable contrast and zoom displays all parameters simultaneously.
Sample Line : 15′ high-temp flex hose w/thermocouple wire
Dimensions : US: 16 x 10 x 12 in. Metric: 40.6 x 25.4 x 30.48 cm
