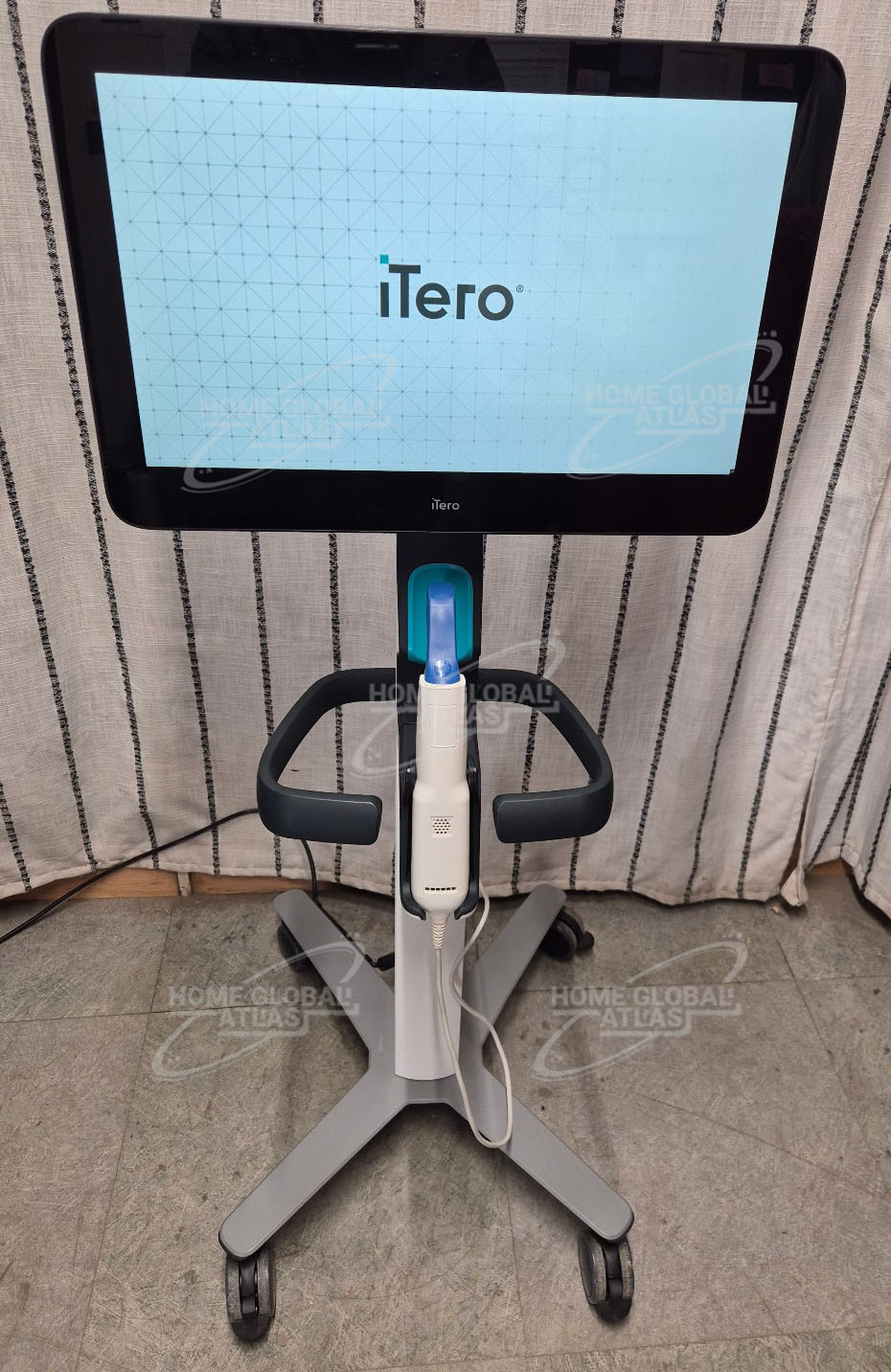

iTero Element 2 Plus

iTero Element 2 Plus

Monitor
21.5” Full HD (1920×1080) touch screen

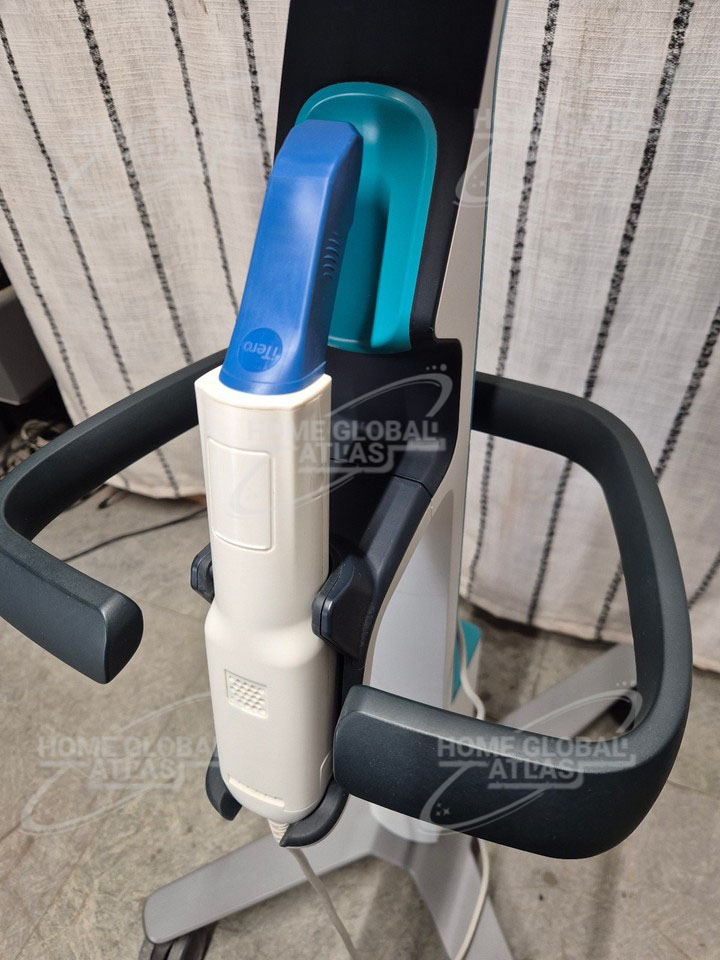

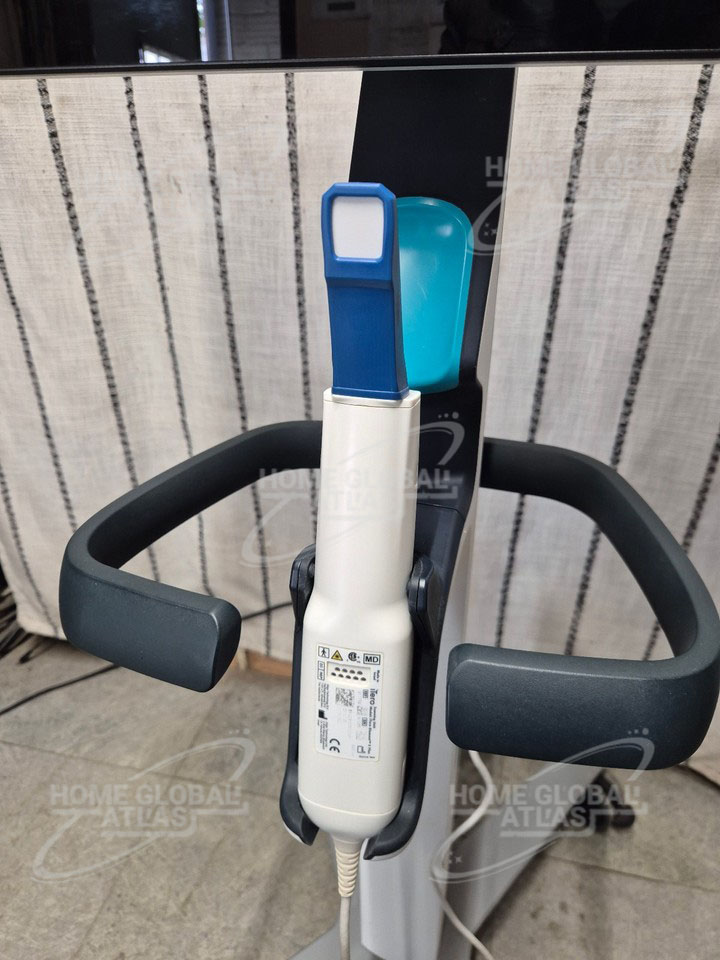

Wand
The wand emits red laser light (680nm Class 1) as well as white LED emissions.

Wand operating power:
15VDC

Wireless LAN
A LAN card provides local network communications with wireless connectivity
2.4GHz, 5GHZ
802.11ac

Security
See the product security whitepaper in appendix C.

Operating Power
100-240 VAC- 50/60 Hz-300VA (max)

Operating Temperature
18°C to 26°C / 64.4°F to 78.8°F

Storage/Transportation Temperature
-5°C to 50°C / 23°F to 122°F

Operating Pressure and Altitude Pressure:
520 mmHg to 771 mmHg (-69 kPa to -103 kPa)
Altitude: -400 feet to 10,000

Storage/Transportation Altitude Pressure:
430 mmHg to 760 mmHg (~57 kPa to ~101 kPa)
Altitude: 0 feet to 15,000 feet

Relative Humidity
Operating: 40% to 70%
Storage: 30% to 90%

Dimensions iTero Full HD touch-screen computing unit:
Height: 356 mm (~14 in)
Width:544 mm (~21.5 in)
Depth: 60.5 mm (~2.3 in)
Wheel stand:
Height: 1279 mm (~50.3 in)
Width: 544 mm (~21.4 in)
Depth: 562 mm (~22.1 in)
Wand:
Length: 338.5 mm (~13 in)
Width: 53.5 mm (~2 in)
Depth: 69.8 mm (~3 in)

Cable length
Power cable: 3000 mm
Wand cable: 1.8 m typical

Net Weight
Computing unit: 10.5 kg (~23.1 lbs.)
Wand: 0.47 kg (~1.0 lbs.) without the cable
Wheel stand: ~12.5 kg (~27.5 lbs.)

CPU Specifications
Intel® Core™ i7

GPU Specifications
Nvidia

Battery
Integrated battery for uninterrupted scanning and ease in office portability without plugging in or rebooting, providing:
At least 30 minutes of active continuous scanning
<2.5 hours for full recharge

Scanner and wand crosscontamination protection
Single-use, disposable sleeves

Accessible ports
USB types A and C

Scanning technology
Parallel Confocal technology

Scanning properties
No hovering required – scanning can be done at a distance of 0 mm
No field calibration needed
Flexible scanning protocol (start anywhere, auto stitching)
Automated heating of the tip to avoid fogging of the lens

Scan time
Full mouth can be completed in as little as 60 seconds.

AI Scan Assistant
Auto-trimming tool: Provides a 3D model cleaned from excess scan material
Auto-margin marking tool:
Provides automatic marking of the margin line on crown cases

Cloud storage iTero Element 2 Plus
Data can be stored and accessed on the web using cloud storage and the MyiTero web portal
