Sale – Rohrer Spectrum

Rohrer Spectrum

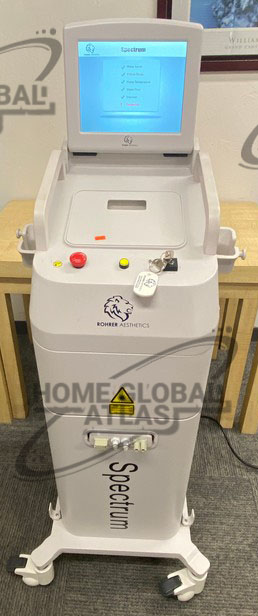

Rohrer Spectrum is the ideal Laser/IPL system for sharing or for physicians with multiple locations. The system easily separates into two pieces and can be placed into the trunk or back of an SUV.

Features & Benefits:

NO Consumables or Disposables

INCLUDES

810-Diode | Hair Removal

The Spectrum is ideal for laser hair removal with a large spot size, a hertz rate capable of up to ten pulses per second, and built-in contact cooling.

Intense Pulsed Light

The intense pulsed light (IPL) has four filters that technicians can utilize for various non-abrasive procedures, including acne reduction, vascular and pigmented lesions removal, and hair reduction.

Q-Switched Yag/KTP | Tattoo Removal

The spectrum includes a laser tattoo removal device known as the Q-Switched Yag/KTP laser. The Q-switched Yag laser uses dual wavelengths (1064nm/532nm) to remove a vast range of tattoo pigments.

Long Pulsed Yag | Vascular Reduction

The Long Pulse Yag Laser reduces vascular lesions, commonly known as spider veins, by using energy to heat, damage, and collapse targeted blood vessels. Technicians can also utilize the Long Pulse Yag to remove different types of vascular lesions, including cherry angioma.

Erbium Yag | Skin Resurfacing

Erbium is a skin resurfacing procedure for the face, neck, chest, and hands to eliminate surface pigmentation and minimize mild to moderate fine lines and wrinkles. The Erbium treatment requires minimal downtime but helps patients achieve dramatic results.

Specifications

Wavelength: 450 to 1200 nm
Maximum Fluence: 5-40 J/cm2
Spot Size: 35 x 15 mm
Repetition Rate: 1 Pulse every 3 seconds
Cooling: Self-Contained Closed Loop, 0-5 degrees Celsius

Indicated Uses for 4 Filters:

650 nm (HR) for Hair Removal
540 nm (SR) Filter for Skin Rejuvenation
510 nm (VR) Filter for Vascular & Pigmented Lesions, Melanin, Seborrheic Keratosis, & Photo Damaged Skin Lesions
450 nm (AR) Filter for Acne & Atrophic Acne Scars

Erbium Yag Handpiece (2940 nm) Specifications

Wavelength: 2940 nm
Energy: Up to 1000 mJ (1 Joule)
Max Power: 2.4 Watts
Pulse Width: 300 microseconds
Beam Divergence: Collimated
Spot Size: 1.5 to 6 mm (with zoom lens)
Application: Laser skin resurfacing, skin ablation and coagulation, wrinkle and scar reduction

Home Global Atlas sell Rohrer Spectrum with best quality product

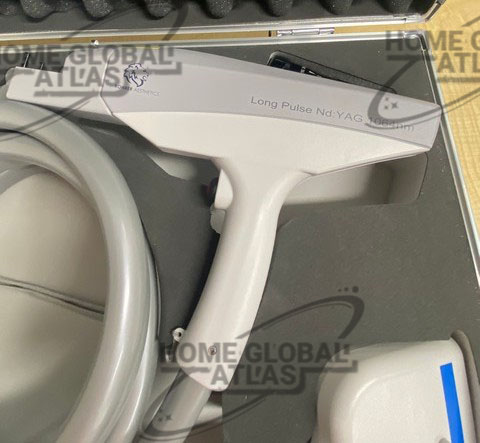

1064 Long Pulse Nd Yag Handpiece Specifications

Wavelength: 1064 nm
Energy: up to 18 Joules
Pulse Width: 3 – 10 ms
Spot Size: 1.5 & 3mm
Application: Removal of Vascular lesions, Including Cherry Angioma.

Q-Switched Handpiece Specifications

Wavelength: 1064 nm
Wavelength KTP Crystal 532nm Converter: 532 nm
Energy: Up to 1000 mJ
Maximum Fluence: 12 J/cm2
Spot Size: 1.5mm, 3mm & 4 mm (with zoom lens)
Pulse Width: 10 Nano-seconds
Repetition Rate (Pulse Rate): 1 to 5 Hz
Application: Tattoo Removal

810 Diode Handpiece Specifications

Wavelength: 810 nm
Spot Size: 12mm x 10 mm
Pulse Width: Adjustabel up to 400ms
Pulse Rate: 0.5 – 10 Herz (pulses per second)
Energy Density: 2-120 J/cm2
Applications: Diode Hair Removal

Rohrer Aesthetics Spectrum Multi-Platform System with 5 Handpieces – IPL, 2940 nm Erbium Yag, Q-Switched 532 / 1064 nm, Long Pulse Nd Yag & Diode.

Includes:
♦ Key
♦ Footswitch
♦ Operator Manual
♦ Viro-Vac Smoke Evacuator
